Their main function is to conceal elements of the guttering system, giving the façade a clean appearance. In addition, they protect gutters and pipes from dirt and mechanical damage. They are available in a variety of colours to match any type of architecture. Dedicated for 125/90 and 125/100 systems.

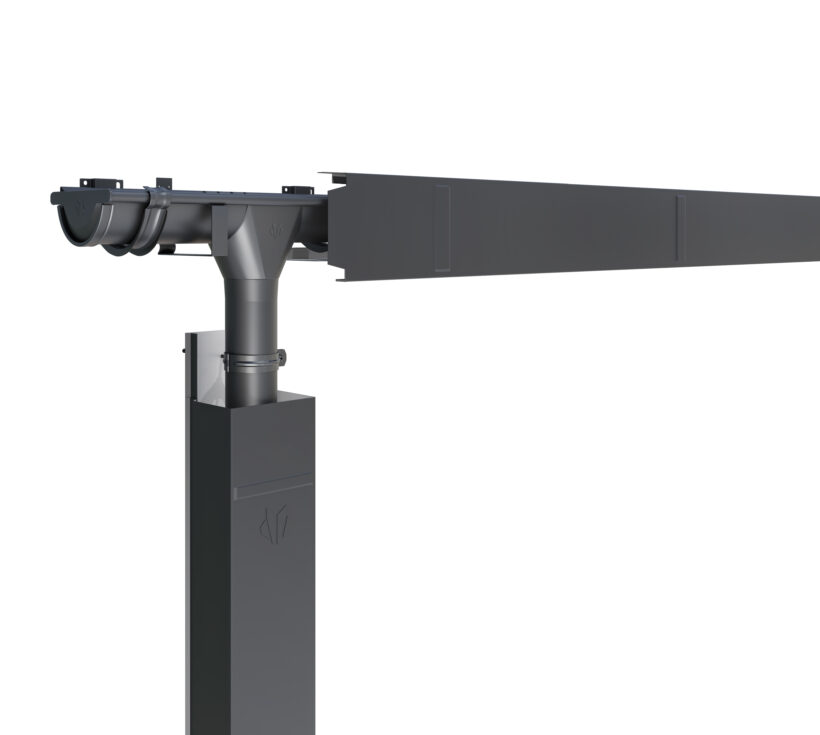

This trim system perfectly conceals gutters and downpipes mounted on an insulated wall, making it a perfect match with modern, minimalist architecture. The clever design of the downpipe covers allows for removal and service access.
SYSTEM WITH EAVES
The trim is provided with an additional profiled soffit element made of LAMBDA 2.0 standing seam or T7 trapezoidal seam panels. It also allows the soffit to be fitted to the fascia board or wall.
FACADE SYSTEM
The façade trim system protects the insulation of the building from possible leakage at the gutter connec- tions, thanks to the use of a gutter strip in its construction.
Perforations in the lower part of the cover securely drain water and maintain optimum ventilation levels.
The gutter system is equipped with a stabilising rubber element to connect the gutter drain to a 110 mm diameter sewer pipe. And the PVC pipe used prevents water from condensing on the surface of downpipes made of steel.
INGURI TRIM ELEMENTS
PIPE COVER
The pipe cover consists of two components; the cover base – the part atta- ched to the wall, and the cover proper – the main part, which conceals the downpipes in an aesthetically pleasing manner, at the same time giving easy access to them in the event of maintenance work. It is designed to correspond in appearance with the gutter cover, providing a consistent aesthetic for the entire system.
GUTTER COVER
The 185 cm long universal cover is a product that replaces standard butt, soffit, gutter strip and soffit, combining the features of all these products. The customer gets a cheaper, equally effective solution that involves less storage space. The cover is fitted with a specially designed trapezoidal mounting lock, which stabilises the covers and minimises the ripple effect. The lower part is a ribbed gutter strip that replaces the soffit. In addition, it allows the flexibility of choosing a different soffit, which is easily fitted to the lower ‚C’ profile in the cover. The cover has been specially reinforced to provide adequate protection.
COVER HANGER
The cover hanger is a stabilising structural element that is installed at 1 metre intervals. Its design allows for perfect vertical alignment of the cover. The hanger is equipped with a specially designed vulcanised hanger so that installation is non-invasive and allows easy connection to the cover.
COVERING CAP
The covering cap allows all components of the gutter system to be finally concealed, under the cover. Simple assembly ensures that the covering tube is closed quickly and without problems.
INNER/OUTER CORNERS
The external and internal corners allow the trim elements to be connected in an aesthetically pleasing way at the junction of two roof slopes or at the corners of the roof. They are made of high-quality material, which makes them aesthetically pleasing and durable.
Steel Gutter Systems INGURI
INGURI Gutter System Fascias
Coatings and colours
ULTIMAT [UTK]
Available colours
UTK 11
UTK 23
UTK 24
UTK 27
UTK 28
UTK 31
UTK 32
UTK 33
UTK 750
The ULTIMAT coating with its grained structure, inspired by nature, is free of chromium and heavy metals and, as an environmentally friendly product, is recyclable. Sheet metal coated with the flexible ULTIMAT coating can be profiled at extremely low temperatures. The coating is 35 μm thick and has very high corrosion and UV resistance (RC4/RUV4).
